Sustainable Surfacing Systems Plastic Paddock Grid Floor
Thumbnail

Sustainable Surfacing Systems Plastic Paddock Grid Floor

  • LY950
  • 333*333*50mm
  • HDPE
  • Black Dark Green
  • More than 250tons/m2 after filled
  • -40 to 120 degree Celsius
  • Paddocks, Horse walkers, Lunging arena, Equestrian sports area etc.
  • 0.65kg/pc; 5.85kg/m2
  • Bundles for FCL and cartons for LCL
  • 570sqm/20'GP; 1150sqm/40'GP; 1310sqm/40'HC

  • Contact Now
Product Details

SUSTAINABLE SURFACING SYSTEMS PLASTIC PADDOCK GRID FLOOR

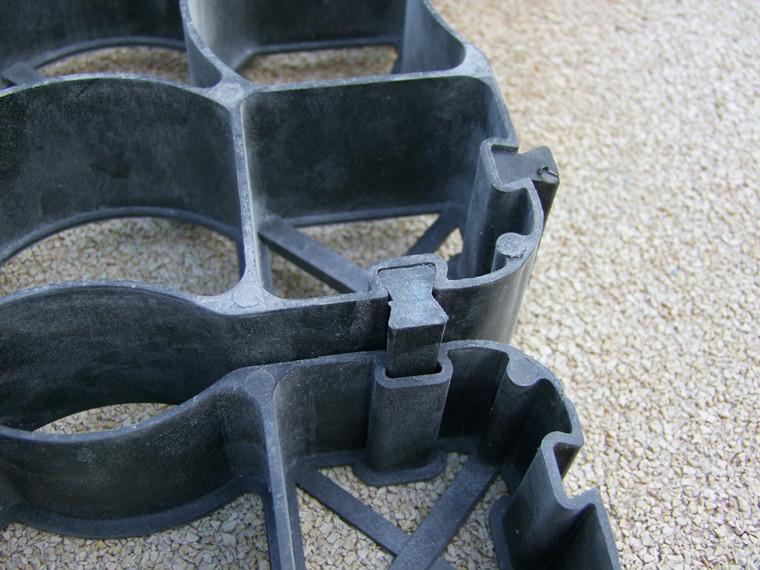

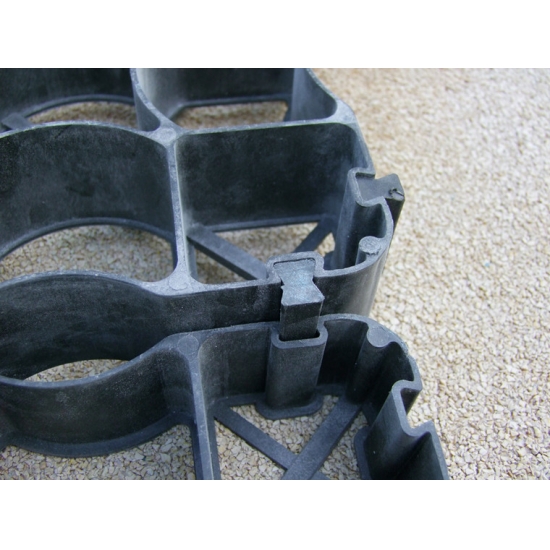

Plastic paddock grid floor is a strong interlocking plastic grid paving system with a wide range of uses. Sustainable surfacing systems grid floor is the best locking system for horse paddock mud management. Its unique design ensures that each piece is firmly locked to create a highly secure surface.

Sustainable Surfacing Systems Plastic Paddock Grid Floor


LEIYUAN NEW ONLINE MUD MANAGEMENT PRODUCT – PLASTIC GRID FLOOR

Sustainable Surfacing Systems Grid Floor is a high quality and versatile range of 100% recycled high density plastic, permeable paving. Plastic grid floor from Leiyuan Industrial Company Limited is the best quality product of its kind in the market place. It is best mud management solutions for all equestrian facilities and livestock owners. Grid floor has a compressive strength of up to 250 tonnes per m2.



DIMENSION

 MATERIAL:  HDPE(100% Recycled High Density Polyethylene)
 SIZE:  336*336*50mm
 COLOR:  Black; Dark Green
 CELL WALL THICKNESS:  2mm
 WEIGHT:  0.65kg/pc; 5.85kg/m²
 PACKING:  Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go.
 LOADING QUANTITY:  570m2/20’gp, 1150m2/40’gp, 1310m2/40’HQ


SPECIFICATION

 LOADING BEARING CAPACITY:  More than 250tons/m2 after filled
 OPEN CELL PERCENTAGE:   92% top; 75% base
 ANTI HCL:  According to GB4218-1984, 30%x24h, no visible change
 ANTI NaOH:   According to GB4218-1984, 30%x24h, no visible change
 THERMAL AGING:   According to GB/T 7141-1999, 70ICx24h, no visible change
 UV RESISTANCE:  According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified
 TOXICITY:  Non Toxic
 DURABILITY:  Durability of at least 10 years in neutral ground of 4<pH<9



COLORS

Sustainable Surfacing Systems Grid FloorSustainable Surfacing Systems Grid Floor


APPLICATION


  • Indoor and outdoor riding arenasPaddock Grid Floor

  • Paddocks and open stables

  • Horse walkers

  • Lunging arena

  • Equestrian sports area

  • Tethering and mounting areas

  • Feeding spots

  • Tolt tracks, Racetracts

  • Gravel road

  • Round pens

  • Washing areas.




FEATURE

Plastic Grid Floor



-Light weight

-Non-slip

-Elastic and robust

-Easy Install

-Crack-proof

-Weatherproof

-Environmentally friendly, 100% recyclable

-High load capacity

-Ammonia resistant

-Withstands frost and UV light

-Does not rot
