Home >>Grass Grid >>Recyclable Plastic HDPE Grass Paver Grid

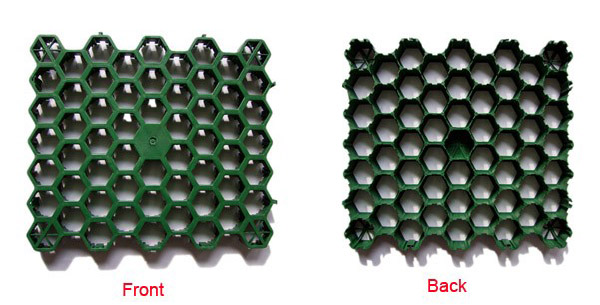

Recyclable Plastic HDPE Grass Paver Grid

Model No. : MZ-450
Size : 465*535*50mm
Material : HDPE
Color : Green
Pressure Strength : 1764KN/sqm
Working Temperature : From -40 degree celsius to +90 degree celsius
Apply Place : Parking lot,car parks,access roads
Weight : 4.55kg/sqm
Package : Bundle,8pcs=2sqm=1bundle
Loading Capacity: 700sqm=1x20ft container;1420sqm=1x40ft container;1
HS Code: 39259000

Contact Now

Product Details

Product Details

Introduction of Recyclable HDPE Plastic Grass Paver Grid

Grass grid is made of HDPE with fiber and age resistor,using high pressure to inject plastic to form bee nest-like shaped shell,with stereo space and support level.It’s widely used in parking lot,pavement ect.It can protect the grass and it is also known as the green grass protection mat.

SPECIFICATION

Item No.	MZ-438	MZ-450		MW-438	MW-450
Size	465x535x38mm	465x535x50mm		465x535x38mm	465x535x50mm
Apply Place	pedestrian areas; on verges; footpaths;	access roads; emergency access lanes; car parks; vehicle hardstandings;		Gravel Road(light vehicle); pedestrian areas; on verges;	Gravel Road; access roads; emergency access lanes; car parks; vehicle hardstandings;
Pressure Strength	1176KN/sqm(120ton/sqm)	1764KN/sqm(180ton/sqm)		1584KN/sqm(160ton/sqm)	1964KN/sqm(200ton/sqm)
Weight	3.65kg/sqm	4.55kg/sqm		4.05kg/sqm	5.5kg/sqm
Material	HDPE(high-density polyethylene)	HDPE(high-density polyethylene)		HDPE(high-density polyethylene)	HDPE(high-density polyethylene)
Durability	durability of at least 8 years in neutral ground of 4 < pH < 9		durability of at least 8 years in neutral ground of 4 < pH < 9	durability of at least 8 years in neutral ground of 4 < pH < 9	durability of at least 8 years in neutral ground of 4 < pH < 9
Working Temterature	Apply in temperature of -40℃ to 90℃		Apply in temperature of -40℃ to 90℃	Apply in temperature of -40℃ to 90℃	Apply in temperature of -40℃ to 90℃
Anti HCL	According to GB4218-1984, 30%x24h, no visible change		According to GB4218-1984, 30%x24h, no visible change	According to GB4218-1984, 30%x24h, no visible change	According to GB4218-1984, 30%x24h, no visible change
Anti NaOH	According to GB4218-1984, 40%x24h, no visible change		According to GB4218-1984, 40%x24h, no visible change	According to GB4218-1984, 40%x24h, no visible change	According to GB4218-1984, 40%x24h, no visible change
Thermal Aging	According to GB/T 7141-1999, 70ICx24h, no visible change		According to GB/T 7141-1999, 70ICx24h, no visible change	According to GB/T 7141-1999, 70ICx24h, no visible change	According to GB/T 7141-1999, 70ICx24h, no visible change
Anti UV	According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified		According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified	According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified	According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified
Package	Bundle, 8pcs=2sqm=1bundle		Bundle, 8pcs=2sqm=1bundle	Bundle, 8pcs=2sqm=1bundle	Bundle, 8pcs=2sqm=1bundle
Loading Capacity	940sqm=1x20ft container 1910sqm=1x40ft container 2160sqm=1x40HC container		700sqm=1x20ft container 1420sqm=1x40ft container 1628sqm=1x40HC container	940sqm=1x20ft container 1910sqm=1x40ft container 2160sqm=1x40HC container	700sqm=1x20ft container 1420sqm=1x40ft container 1628sqm=1x40HC container

FEATURES

Perfect greening: cover more than95%grass area with complete green effect,it can absorb noise,dust,heat byground reflection.
Save investment:Grass grids bombinedparking garage and greening,saving land.
High strength and durability: Grass gridusing patented technology, the maximum compression capacity is 200 tons/sqm,greater than regulatory requirements of the saving fire plane 32 tons/sqm. Itsstable performance, anti-UV, anti acid corrosion, and anti-wear pressure makethe fire exits, fire climb surface into a green surface.
Weather resistance: it could work from-40°C~90°C
Protection of grass: load-bearing layerof gravel to provide a certain amount of water features, enabling the growth ofgrass, grass can grow to the gravel layer.
Formation integrity: a unique and stronggrass grid snap-lap the whole pavement together into a flat overall, to avoidlocal depression, suitable for exercise, entertainment and leisure

APPLICATION
