Green Roof Rainwater Recycling System
- LY-H
- 640*450*410mm
- PP
- Black
- 25tons/sqm
- -30℃ to +120 ℃
- Roof Garden, Road Drainage, Parkland, Residential Area, Car Parking Lot, Golf Course, Sports Filed etc
- 8kg/module
- 680*410mm 8pcs/bundle;450*410mm 10pcs/bundle
- 90CBM/20'GP;189CBM/40'GP;216CBM/40'HQ
- 3925900
- Contact Now
Let Every Drop of Rainwater Full Play Its Value
Roof Rainwater Recycling System Specification:
| Product Name | Rainwater Recycling System |
| Material | PP |
| Place of Origin | Fujian, China |
| Color | Black |
| Dimension | L680*W450*H410mm |
| Total Volume | 0.125 CBM/module |
| Weight | 8kg/module |
| Working Temperature | From -30℃ to +120℃ |
| Pressure Strength | 25tons/sqm |
| HS Code | 3925900 |
| Feature | Interconnecting Units Light weight and high strength Cost effective and eco-friendly Resistant to acid and alkali High capacity and high stability 95% void ratio Space saving Strong structural design Straightforward installation High working efficiency 25 tons/sqm of pressure capability More than 50 years working life |
| Application | Roof Garden Road Drainage Water Filtration System Car Parking Lot Residential Area Parkland Sports Field System Golf Course |
| Certificate | ISO9001:2008 |
Rain Water Recycling System Benefits:
1. Harvest rainwater
2. Reduce polluted storm water runoff
3. Protect natural bush lands and creeks
4. Provide and ecologically sustainable storm water system
5. Quick Installation – Reduce site access delays
6. Lightweight – No cranes or lifting equipment required
7. Strong structural design – Designed for car loading
8. Modular – Easily create any shape and size to suite site requirements
9. Maintenance Free Tank – All debris and sediment is removed by pr-filtration
10. Determinate Volume- 95% internal void area
11. Cost Effective – Reduces excavation and disposal by two thirds compared with conventional soak wells.
12. High Infiltration – 90% void surface area
13. Easily Transportable

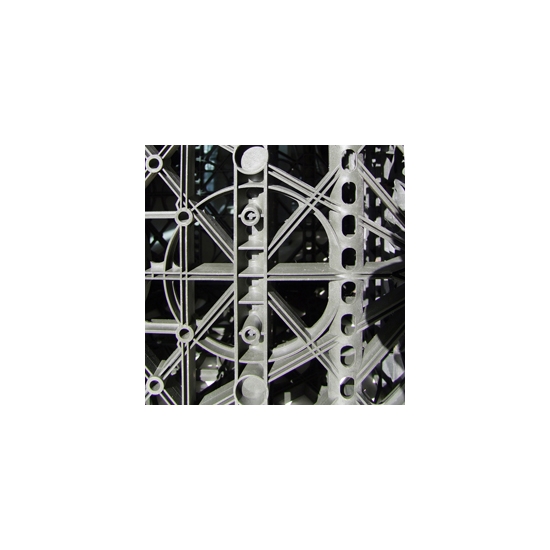

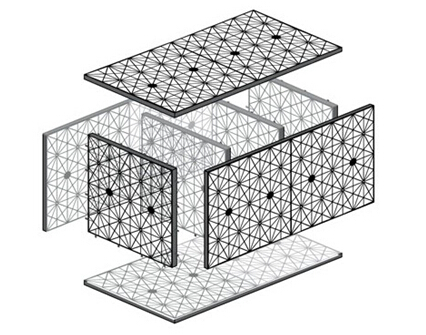

Stormwater Collection Tank Module Detail Pictures:
Company Introduction:
From 2008, Quanzhou Mingjing Plastic Products Co., Ltd. cooperative invested by Quanzhou Leiyuan Industrial Co., Ltd. is mainly engaged in the research and production of plastic gardening materials. Now the company covers a factory area of more than eight thousand square meters. Leiyuan provide high quality and environmentally friendly Drainage Tank Module with a high void ratio and are ideal for creating underground storage tanks.
The products we dealing with: drainage cell, grass grid, drain cover, vertical greening container, roof greening plant container,
root barrier, Waterproof material etc.
Brief Introduction Collection Module:
Rainwater Tank Module means the entire process of rainwater collecting. It is becoming increasingly obvious to most governments around the world that the cost of providing a usable water supply is increasing rapidly. Decaying infrastructure and storm water system pollution is not only contaminating ecosystems but this valuable source of water is literally going down the drain. A solution for this problem is Rainwater harvesting, it is the process of collecting, storing, and distributing rainwater from the roof for use in and around the home or office.
Leiyuan Roof Rainwater Recycling System designed with scientific structure and manufactured using recycled material. It is a lightweight structural component developed through years of research & development. Pressure strength per square meter is 25tons. Plastic modular is ideal for the construction infiltration tanks, re-use tanks, sub surface channels and lightweight void spaces for rooftop gardens, parkland, parking lot, road etc. We are able to produce higher pressure strength products according to customers’ specification.
Project Picture:
